Hash Task

Overview

The Hash Task generates cryptographic hash values from text using industry-standard algorithms (SHA-512, SHA-256, SHA-1, or MD5). Hashes are one-way functions that convert data into fixed-length strings, perfect for data integrity checks, cache keys, API signatures, and deduplication.

When to use this task:

  • Generate unique identifiers from data
  • Verify data integrity and detect tampering
  • Create API signatures for authentication
  • Generate cache keys from request parameters
  • Deduplicate content by comparing hashes
  • Create idempotency keys for APIs
  • Generate consistent IDs from variable inputs

Key Features:

  • Four hash algorithms (SHA-512, SHA-256, SHA-1, MD5)
  • One-way cryptographic function
  • Deterministic (same input = same hash)
  • Fast computation
  • Hexadecimal output
  • Variable support
  • Collision resistant (SHA-256+)

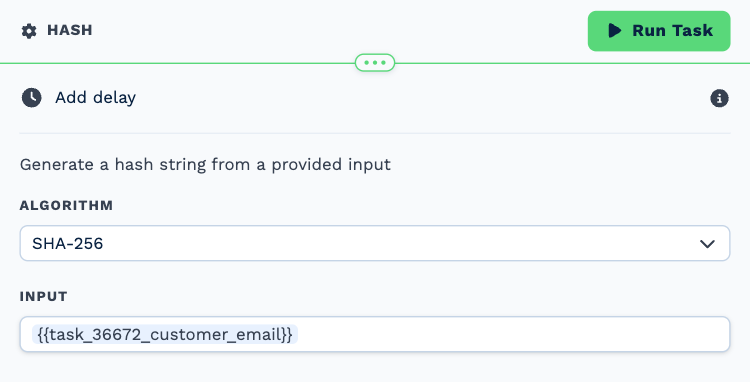

Quick Start

1. Add Hash task
2. Select algorithm (SHA-256 recommended)
3. Enter text to hash
4. Returns hexadecimal hash string
5. Save

Configuration

Hash Algorithm

SHA-512 (recommended for security)
SHA-256 (standard, widely used)
SHA-1 (legacy, not for security)
MD5 (checksums only, not secure)

Input Text

Input: Hello World
Input: {{task_55001_email}}{{task_55001_timestamp}}
Input: {{task_46001_request_body}}

Any text, including variables from previous tasks.

Output Fields

Field Description Example
task_33001_run Success status true
task_33001_run_text Result message Successfully hashed.
task_33001_hash Generated hash (hex) a591a6d40bf420404a011...

Hash Algorithm Comparison

Algorithm Length Use Case Security
SHA-512 128 hex chars Maximum security, sensitive data ✓✓✓ Excellent
SHA-256 64 hex chars Standard security, most common ✓✓✓ Excellent
SHA-1 40 hex chars Legacy systems only ⚠️ Deprecated
MD5 32 hex chars Checksums, non-security uses ❌ Broken

Recommendation: Use SHA-256 for most cases, SHA-512 for maximum security.

Real-World Examples

Example 1: API Request Idempotency Keys

Scenario: Prevent duplicate API requests by generating idempotency keys from request data

Workflow: 1. Webhook In - API request received 2. Merge Data - Combine key request fields 3. Hash - Generate idempotency key 4. MySQL Query - Check if key exists 5. If Task - Process or reject 6. Webhook Out - Send response

Merge Request Data:

Map:
customer_id: {{task_46001_customer_id}}
order_items: {{task_46001_items}}
total_amount: {{task_46001_total}}
timestamp_day: {{task_46001_date}}

Combined: {{task_46001_customer_id}}-{{task_46001_items}}-{{task_46001_total}}-{{task_46001_date}}

Generate Idempotency Key:

Algorithm: SHA-256
Input: {{task_53001_combined}}

Result: 8f434c5... (64 character hash)

Check for Duplicate:

SELECT COUNT(*) as count, response_data
FROM api_requests
WHERE idempotency_key = '{{task_33001_hash}}'
AND created_at > DATE_SUB(NOW(), INTERVAL 24 HOUR)

Process or Return Cached:

Condition: {{task_43001_count}} = 0
True: Process new request
False: Return cached response from {{task_43001_response_data}}

Store Request:

INSERT INTO api_requests
(idempotency_key, customer_id, request_data, response_data, created_at)
VALUES ('{{task_33001_hash}}',
        '{{task_46001_customer_id}}',
        '{{task_46001_body}}',
        '{{task_18001_response}}',
        NOW())

Example 2: Content Deduplication System

Scenario: Detect duplicate content submissions using hash comparison

Workflow: 1. Form Submission - Content submission 2. Hash - Hash content body 3. MySQL Query - Search for matching hash 4. If Task - Check if duplicate 5. Email - Notify submitter 6. MySQL Query - Store or link to existing

Hash Content:

Algorithm: SHA-256
Input: {{task_55001_title}}{{task_55001_body}}{{task_55001_author}}

# Combine key fields that define uniqueness

Search for Duplicate:

SELECT content_id, title, author, created_at, url
FROM content_library
WHERE content_hash = '{{task_33001_hash}}'
LIMIT 1

Check Result:

Condition: {{task_43001_row_count}} > 0
True: Duplicate found
False: New content

Duplicate Email:

To: {{task_55001_email}}
Subject: Duplicate Content Detected

Hi {{task_55001_author}},

We found that this content already exists in our system:

Your Submission: "{{task_55001_title}}"
Matches Existing: "{{task_43001_title}}"

Created: {{task_43001_created_at}}
URL: {{task_43001_url}}

Content Hash: {{task_33001_hash}}

Please review or submit different content.

Store New Content:

INSERT INTO content_library
(title, body, author, content_hash, created_at)
VALUES ('{{task_55001_title}}',
        '{{task_55001_body}}',
        '{{task_55001_author}}',
        '{{task_33001_hash}}',
        NOW())

Example 3: Webhook Signature Verification

Scenario: Verify webhook authenticity using hash-based signatures

Workflow: 1. Webhook In - Webhook received 2. Merge Data - Combine payload + secret 3. Hash - Generate expected signature 4. If Task - Compare signatures 5. Process webhook or reject

Combine Payload with Secret:

Map:
payload: {{task_46001_body}}
secret: {{env_webhook_secret}}

Combined: {{task_46001_body}}{{env_webhook_secret}}

Generate Expected Signature:

Algorithm: SHA-256
Input: {{task_53001_combined}}

Compare Signatures:

Condition: {{task_33001_hash}} = {{task_46001_signature_header}}
True: Valid webhook, process
False: Invalid signature, reject

Reject Invalid:

Return 401 Unauthorized

Body:
{
  "error": "Invalid signature",
  "expected": "{{task_33001_hash}}",
  "received": "{{task_46001_signature_header}}"
}

Process Valid Webhook:

Webhook authenticated successfully.
Expected: {{task_33001_hash}}
Received: {{task_46001_signature_header}}
Status: MATCH ✓

Proceed with webhook processing...

Example 4: Intelligent Cache Key Generation

Scenario: Generate consistent cache keys from API request parameters

Workflow: 1. Webhook In - API request 2. Merge Data - Normalize parameters 3. Hash - Generate cache key 4. MySQL Query - Check cache 5. If Task - Return cached or compute 6. MySQL Query - Store result

Normalize Parameters:

Map:
endpoint: {{task_46001_endpoint}}
method: {{task_46001_method}}
user_id: {{task_46001_user_id}}
params_sorted: {{task_46001_query_params_sorted}}

# Sort parameters to ensure same order
Combined: {{endpoint}}-{{method}}-{{user_id}}-{{params_sorted}}

Generate Cache Key:

Algorithm: SHA-256
Input: {{task_53001_combined}}

Result: cache_8f434c5a2d8e1b9c...

Check Cache:

SELECT response_data, expires_at
FROM api_cache
WHERE cache_key = '{{task_33001_hash}}'
AND expires_at > NOW()
LIMIT 1

Return Cached or Compute:

Condition: {{task_43001_row_count}} > 0
True: Return {{task_43001_response_data}}
False: Compute and cache

Store in Cache:

INSERT INTO api_cache
(cache_key, response_data, expires_at, created_at)
VALUES ('{{task_33001_hash}}',
        '{{task_18001_response}}',
        DATE_ADD(NOW(), INTERVAL 1 HOUR),
        NOW())
ON DUPLICATE KEY UPDATE
  response_data = '{{task_18001_response}}',
  expires_at = DATE_ADD(NOW(), INTERVAL 1 HOUR)

Example 5: File Integrity Verification

Scenario: Verify downloaded file hasn't been tampered with

Workflow: 1. Webhook In - Download notification 2. Files - Download file 3. Hash - Hash file content 4. If Task - Compare with expected hash 5. Email - Alert on mismatch 6. MySQL Query - Log verification

Hash Downloaded File:

Algorithm: SHA-256
Input: {{task_39001_file_content}}

# Hash the actual file content

Compare Hashes:

Condition: {{task_33001_hash}} = {{task_46001_expected_hash}}
True: File integrity verified ✓
False: FILE TAMPERED - SECURITY ALERT!

Security Alert (Mismatch):

To: security@company.com
Subject: 🚨 FILE INTEGRITY CHECK FAILED

SECURITY ALERT - Potential File Tampering Detected

File: {{task_46001_filename}}
Source: {{task_46001_source_url}}
Downloaded: {{current_timestamp}}

Expected Hash (SHA-256): {{task_46001_expected_hash}}
Actual Hash (SHA-256): {{task_33001_hash}}

STATUS: HASHES DO NOT MATCH

This file may have been tampered with or corrupted.
DO NOT USE this file until verified.

[View Details] [Quarantine File]

Log Verification:

INSERT INTO file_integrity_log
(filename, source_url, expected_hash, actual_hash, match_status, verified_at)
VALUES ('{{task_46001_filename}}',
        '{{task_46001_source_url}}',
        '{{task_46001_expected_hash}}',
        '{{task_33001_hash}}',
        {{task_33001_hash == task_46001_expected_hash}},
        NOW())

Success Notification:

File integrity verified successfully.

File: {{task_46001_filename}}
Hash: {{task_33001_hash}}
Status: ✓ VERIFIED

File is safe to use.

Best Practices

Algorithm Selection

  1. SHA-256 - Default choice for most use cases
  2. SHA-512 - When maximum security required
  3. SHA-1 - Only for legacy system compatibility
  4. MD5 - Only for non-security checksums

Security Considerations

✓ DO use for:
- Data integrity verification
- Idempotency keys
- Cache keys
- Content deduplication
- API signatures (with secret)

❌ DON'T use for:
- Direct password storage (use bcrypt/argon2)
- Encryption (hash is one-way)
- Sensitive data exposure (hash is deterministic)

Input Preparation

  1. Normalize data - Remove whitespace, consistent formatting
  2. Sort parameters - Ensure consistent order
  3. Include context - Add secrets for signatures
  4. Document format - Specify what's being hashed

Collision Handling

  • SHA-256/512: Virtually impossible to find collisions
  • SHA-1: Known collision attacks exist
  • MD5: Collisions easily generated
  • Always use SHA-256+ for security-sensitive applications

Troubleshooting

Different Hash Each Time

Issue: Same input produces different hashes

Causes: - Input includes timestamp or random data - Variable not properly resolved - Extra whitespace or formatting

Solution:

# Include only stable data
Wrong: {{task_46001_data}}{{current_timestamp}}
Right: {{task_46001_data}}

# Debug input
Code Task: return {input_debug: input.task_46001_data};

Hash Comparison Fails

Issue: Hashes don't match when they should

Causes: - Case sensitivity in input - Extra whitespace - Different encoding - Variable order changed

Solution:

# Normalize before hashing
Formatter: LOWERCASE {{input}}
Find Replace: Remove extra spaces

# Use same input format
Document expected format clearly

Security Concerns

Issue: Need to hash passwords

Solution:

❌ Don't use Hash task for passwords
✓ Use proper password hashing:
  - bcrypt
  - argon2
  - PBKDF2 with salt

Hash task is for data integrity, not password storage.

Frequently Asked Questions

Can I reverse a hash?

No, hashes are one-way functions. Cannot retrieve original input from hash.

Are hashes unique?

Practically yes for SHA-256/512. Collisions are mathematically possible but virtually impossible to find.

Can I use this for passwords?

No, use dedicated password hashing libraries (bcrypt, argon2) that include salting and key stretching.

What's the difference between SHA-256 and SHA-512?

SHA-512 is more secure (longer hash) but slower. SHA-256 is industry standard and sufficient for most uses.

Can I hash files?

Yes, provide file content as input. For large files, consider using Code task with streaming hashing.

Is MD5 secure?

No, MD5 is cryptographically broken. Use only for non-security checksums. Never for passwords or integrity verification.

Do I need a secret key?

Not for basic hashing. For API signatures (HMAC), combine data with secret before hashing.

  • Variable - Store hash for later comparison
  • If Task - Compare hashes to verify integrity
  • Merge Data - Combine data before hashing
  • Code Task - Complex hashing logic or HMAC
  • MySQL Query - Store and lookup hashes
  • Webhook Out - Include hash in API requests
