Paystack Payment Processor¶

Overview¶

The Paystack task enables payment processing for African markets through the Paystack payment gateway. It supports two primary operations: charging stored payment methods for recurring transactions, and generating payment links for one-time payments.

Paystack is ideal for businesses serving customers in Nigeria, Ghana, South Africa, and Kenya, offering local payment methods and currencies optimized for the African market.

Type Number: 32
Category: Integration - Payment Processing
Difficulty: Intermediate
Geographic Focus: African markets (Nigeria, Ghana, South Africa, Kenya)

How It Works¶

Paystack integrates with your BaseCloud CRM to process payments through two distinct workflows:

1. Charge Account: Charges a stored payment method using authorization codes from the billing_accounts table
2. Create Payment Link: Generates a Paystack checkout URL for one-time payments with email collection

graph TB
    A[Paystack Task Triggers] --> B{Action Type?}
    B -->|charge_account| C[Lookup Client]
    C --> D[Find Active Billing Account]
    D --> E[Charge Authorization Code]
    E --> F[Return Transaction Result]
    B -->|create_payment_link| G[Validate Email & Amount]
    G --> H[Initialize Paystack Transaction]
    H --> I[Return Payment URL]

Prerequisites¶

Required: Paystack App Connection¶

Before using this task, you must configure a Paystack app connection:

1. Get Paystack API Keys:
2. Log into your Paystack Dashboard
3. Navigate to Settings > API Keys & Webhooks
4. Copy your Secret Key (starts with sk_live_ or sk_test_)

5. Copy your Public Key (starts with pk_live_ or pk_test_)

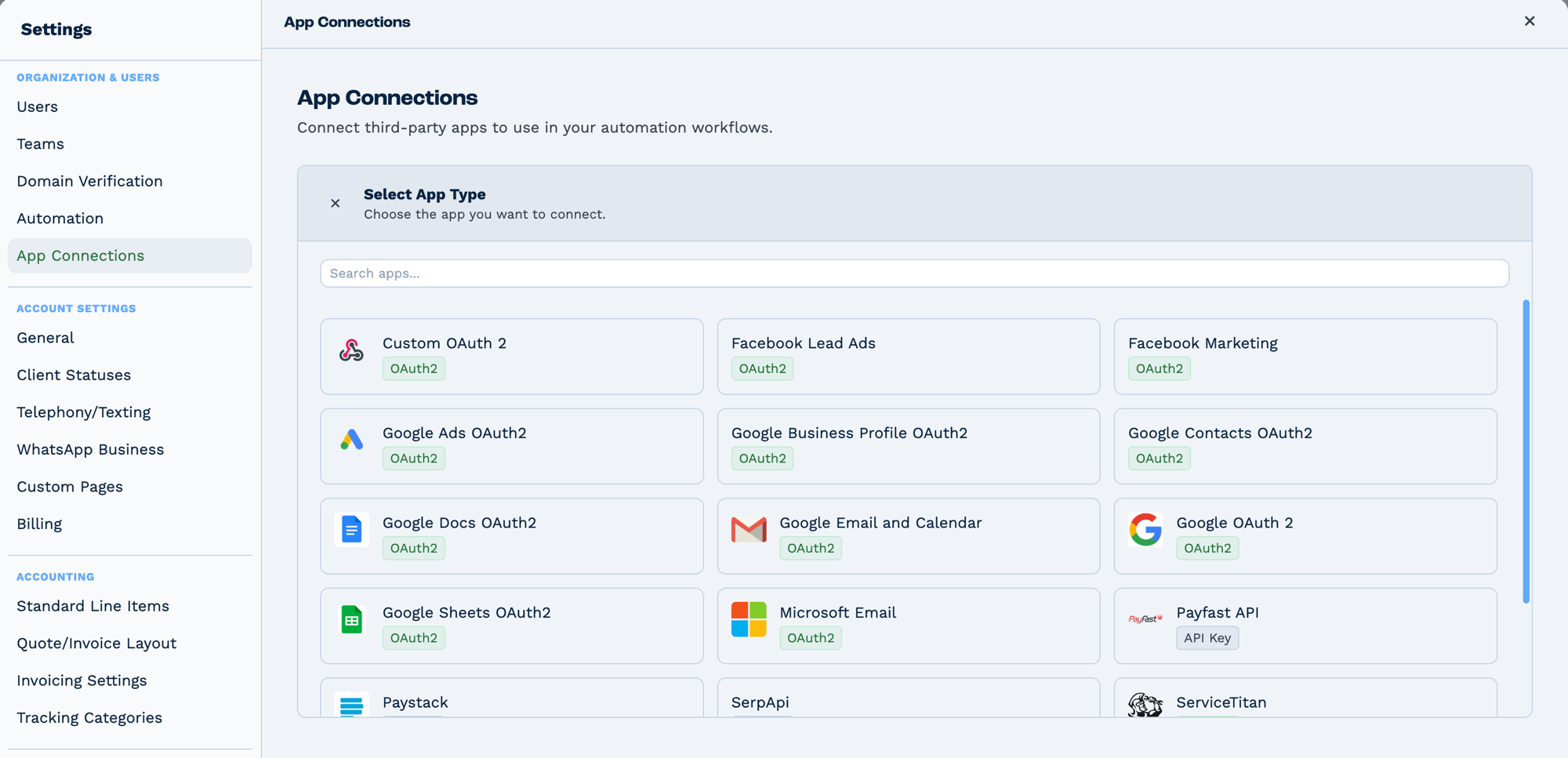

6. Create App Connection:

7. Go to Settings > App Connections in BaseCloud
8. Create new connection with Type ID = 4 (Paystack)

9. Store credentials as JSON:

   {
     "secret_key": "sk_live_xxxxxxxxxxxxx",
     "public_key": "pk_live_xxxxxxxxxxxxx"
   }


10. Reference Connection:

11. Use the app_connection_id in your task configuration
12. Store connection ID in a variable for reusability

Required for charge_account: Billing Account Setup¶

To charge stored payment methods, clients must have active billing accounts:

• Stored in billing_accounts table
• Status must be "Active"
• Contains Paystack authorization_code and customer_email
• Associated with client via owner_id
• Created when customer completes first payment via Paystack

Configuration¶

Action: charge_account¶

Purpose: Charge a client's stored payment method for recurring or automated payments.

Example Configuration:

app_connection_id: {{var_paystack_connection}}
paystack_action: charge_account
o_client_id: {{trigger_client_id}}
currency: NGN
amount: {{client_subscription_amount}}
metadata_invoice_id: {{invoice_id}}
metadata_subscription_type: monthly

Action: create_payment_link¶

Purpose: Generate a Paystack payment URL for one-time payments.

Example Configuration:

app_connection_id: {{var_paystack_connection}}
paystack_action: create_payment_link
email: {{client_email}}
currency: NGN
amount: {{invoice_total}}

Output Fields¶

The task generates workflow variables following the pattern task_32001_<field_name>:

Common Output Fields¶

charge_account Output¶

{
  "task_32001_run": true,
  "task_32001_run_text": "Transaction Successful",
  "task_32001_status": true,
  "task_32001_message": "Charge attempted",
  "task_32001_data_id": 123456789,
  "task_32001_data_domain": "live",
  "task_32001_data_status": "success",
  "task_32001_data_reference": "PAYSTACK-1707397234567-8901",
  "task_32001_data_amount": 50000,
  "task_32001_data_currency": "NGN",
  "task_32001_data_authorization_authorization_code": "AUTH_xxxxx",
  "task_32001_data_authorization_card_type": "visa",
  "task_32001_data_authorization_last4": "4081",
  "task_32001_data_authorization_bank": "TEST BANK",
  "task_32001_data_customer_email": "customer@example.com"
}

create_payment_link Output¶

{
  "task_32001_run": true,
  "task_32001_run_text": "Authorization URL created",
  "task_32001_status": true,
  "task_32001_message": "Authorization URL created",
  "task_32001_data_authorization_url": "https://checkout.paystack.com/xxxxxxx",
  "task_32001_data_access_code": "xxxxxxx",
  "task_32001_data_reference": "PAYSTACK-1707397234567-8901"
}

Real-World Examples¶

Example 1: Automated Monthly Subscription Billing¶

Scenario: Automatically charge clients for monthly SaaS subscriptions using stored payment methods.

Workflow:

Timer Trigger (1st day of month, 9 AM)
  ↓
MySQL Query (SELECT * FROM clients WHERE subscription_status = 'active')
  ↓
Loop (Through each active subscriber)
  ↓
Paystack
    - app_connection_id: {{var_paystack_connection}}
    - paystack_action: charge_account
    - o_client_id: {{loop_item_client_id}}
    - currency: NGN
    - amount: {{loop_item_subscription_amount}}
    - metadata_subscription_month: {{current_month}}
  ↓
If Condition ({{task_32001_run}} = true)
    YES → Email (Send payment confirmation)
          ↓
          Edit Client (Update last_payment_date)
          ↓
          MySQL Query (INSERT INTO invoices...)
    NO  → Email (Send payment failure notification)
          ↓
          Workflow Note (Log failed payment for review)

Benefits: - Fully automated recurring billing - Immediate failure notifications - Automatic invoice generation on success - Metadata tracks subscription details

Example 2: Invoice Payment Links¶

Scenario: Generate payment links for unpaid invoices and email them to clients.

Workflow:

CRM Trigger (Invoice status changed to "Sent")
  ↓
If Condition ({{trigger_invoice_total}} > 0)
  ↓
Paystack
    - app_connection_id: {{var_paystack_connection}}
    - paystack_action: create_payment_link
    - email: {{trigger_client_email}}
    - currency: NGN
    - amount: {{trigger_invoice_total}}
  ↓
Variable (Store payment URL)
    - payment_link: {{task_32001_data_authorization_url}}
    - payment_reference: {{task_32001_data_reference}}
  ↓
Email
    - To: {{trigger_client_email}}
    - Subject: Invoice #{{trigger_invoice_number}} - Payment Required
    - Body: "Click here to pay: {{task_41001_payment_link}}"
  ↓
Edit Client (Update last_invoice_sent_date)
  ↓
Webhook Trigger (Listen for Paystack payment webhook)
    ↓
    MySQL Query (UPDATE invoices SET status = 'paid'...)

Benefits: - Instant payment link generation - Professional automated invoicing - Webhook integration for real-time updates - Tracking via payment references

Example 3: Failed Payment Retry System¶

Scenario: Automatically retry failed subscription payments after 3 days with notification escalation.

Workflow:

Webhook Trigger (Paystack payment failed)
  ↓
Match Client (Find client by {{trigger_customer_code}})
  ↓
Workflow Note (Log initial payment failure)
  ↓
Email (Send payment failure notice)
    - Subject: "Payment Failed - Please Update Card"
    - Body: "Your payment for ₦{{trigger_amount}} failed. We'll retry in 3 days."
  ↓
Delay (3 days)
  ↓
MySQL Query (Check if payment was manually resolved)
  ↓
If Condition ({{task_43001_count}} = 0)
    YES → Paystack
           - paystack_action: charge_account
           - o_client_id: {{task_15001_client_id}}
           - currency: NGN
           - amount: {{trigger_amount_major_units}}
          ↓
          If Condition ({{task_32001_run}} = true)
              YES → Email (Payment successful after retry)
                    ↓
                    Edit Client (subscription_status = "active")
              NO  → Email (Second failure - action required)
                    ↓
                    Edit Client (subscription_status = "payment_issues")
                    ↓
                    Workflow Note (Escalate to billing team)

Benefits: - Automatic retry reduces manual intervention - Progressive notification escalation - Status tracking in CRM - Billing team escalation on repeated failures

Example 4: Variable Amount Donations with Thank You Email¶

Scenario: Accept donations of any amount with automatic thank you emails and receipt generation.

Workflow:

Website Form Trigger (Donation form submitted)
  ↓
New Client
    - Name: {{trigger_donor_name}}
    - Email: {{trigger_donor_email}}
    - Category: "Donor"
  ↓
Paystack
    - app_connection_id: {{var_paystack_connection}}
    - paystack_action: create_payment_link
    - email: {{trigger_donor_email}}
    - currency: {{trigger_currency}}
    - amount: {{trigger_donation_amount}}
  ↓
Variable (Store donation details)
    - donation_link: {{task_32001_data_authorization_url}}
    - donation_ref: {{task_32001_data_reference}}
  ↓
Email
    - To: {{trigger_donor_email}}
    - Subject: Thank You for Your Donation!
    - Body: |
        Dear {{trigger_donor_name}},

        Thank you for your generous donation of {{trigger_currency}} {{trigger_donation_amount}}.

        Complete your donation: {{task_41001_donation_link}}

        Your donation reference: {{task_41001_donation_ref}}
  ↓
Webhook Trigger (Paystack payment success)
    ↓
    Edit Client (Add donation to total_donated)
    ↓
    PDF - Generate tax receipt
    ↓
    Email (Send receipt with PDF attachment)

Benefits: - Flexible donation amounts - Immediate email confirmation - Automatic receipt generation - Donor tracking in CRM

Example 5: Multi-Tier Subscription Upgrade¶

Scenario: Allow clients to upgrade subscriptions with prorated charges using stored payment methods.

Workflow:

Manual Button Trigger (Client clicks "Upgrade Plan")
  ↓
MySQL Query (Calculate prorated amount)
    - Query: |
        SELECT
          (new_plan_price - current_plan_price) *
          (days_remaining / 30) as prorated_amount
        FROM subscriptions WHERE client_id = {{trigger_client_id}}
  ↓
If Condition ({{task_43001_prorated_amount}} > 0)
    YES → Paystack
           - app_connection_id: {{var_paystack_connection}}
           - paystack_action: charge_account
           - o_client_id: {{trigger_client_id}}
           - currency: NGN
           - amount: {{task_43001_prorated_amount}}
           - metadata_upgrade_type: prorated
           - metadata_old_plan: {{trigger_old_plan}}
           - metadata_new_plan: {{trigger_new_plan}}
          ↓
          If Condition ({{task_32001_run}} = true)
              YES → MySQL Query (UPDATE subscriptions SET plan = ...)
                    ↓
                    Email (Upgrade confirmation)
                    ↓
                    Workflow Note (Log successful upgrade)
              NO  → Email (Upgrade failed - payment issue)
                    ↓
                    Workflow Note (Upgrade attempt failed)

Benefits: - Fair prorated pricing - Instant plan upgrades - Comprehensive upgrade tracking - Automatic failure handling

Common Use Cases¶

• Recurring Subscriptions: Monthly/annual SaaS billing
• Invoice Payments: One-time payment links for invoices
• Donation Processing: Accept variable amount contributions
• Membership Fees: Annual membership renewals
• Course Enrollments: Education platform payments
• Event Tickets: Conference and event registrations
• Service Retainers: Professional services advance payments
• Top-up Services: Credit/wallet recharge systems
• Marketplace Transactions: Seller payouts and commissions
• Installment Payments: Split payment collections

Supported Currencies¶

Paystack supports multiple African currencies:

• NGN - Nigerian Naira (primary)
• GHS - Ghanaian Cedi
• ZAR - South African Rand
• USD - US Dollar
• KES - Kenyan Shilling

Note: Amount is automatically converted to minor units (kobo/pesewas). For example: - Input: 500.00 NGN - Sent to Paystack: 50000 (kobo)

Troubleshooting¶

"No active billing account found for this client"¶

Cause: Client doesn't have a stored payment method.

Solutions: 1. Use create_payment_link action to collect payment details first 2. After first successful payment, Paystack creates authorization code 3. Webhook stores authorization code in billing_accounts table 4. Subsequent charges use charge_account action

"Paystack secret key not found in connection"¶

Cause: App connection credentials not properly configured.

Solutions: 1. Verify credentials stored as valid JSON:

{"secret_key": "sk_live_xxx", "public_key": "pk_live_xxx"}

"Amount is not a number"¶

Cause: Amount field contains non-numeric value or variable is empty.

Solutions: - Validate amount source (trigger field, database query, calculation) - Use Formatter task to clean input - Add If Condition to check amount before processing - Example: {{task_20001_formatted_amount}}

Payment status shows "failed" in Paystack dashboard¶

Possible Causes: 1. Insufficient Funds: Customer's card declined 2. Card Blocked: Bank blocked transaction 3. Expired Card: Card expiration date passed 4. Invalid Authorization: Authorization code revoked

Solutions: - Check task_32001_message for specific error - Send email to customer requesting card update - Use create_payment_link to collect new payment method - Implement retry logic with delays

Webhook not updating order status¶

Cause: Webhook listener not configured or payment reference mismatch.

Solutions: 1. Configure Paystack webhooks in dashboard: - URL: https://api.basecloudglobal.com/v2/hooks/paystack-webhook - Events: charge.success, charge.failed 2. Verify webhook signature validation 3. Store payment reference in database for matching 4. Use Workflow Note to debug webhook data

Currency mismatch errors¶

Cause: Billing account currency differs from charge currency.

Solutions: - Store currency in client profile - Match currency to client's country - Default to NGN for Nigerian clients - Allow clients to select preferred currency

Limitations & Considerations¶

Technical Limitations¶

• Geographic Restriction: Optimized for African markets (Nigeria, Ghana, SA, Kenya)
• Currency Conversion: Limited multi-currency support compared to global processors
• Card Types: Primarily supports Visa, Mastercard, Verve
• Authorization Codes: Single-use; expired codes require new payment
• Amount Limits: Minimum ₦100, maximum varies by account verification level

Best Practices¶

• Test Mode: Use test keys (sk_test_, pk_test_) during development
• Reference Tracking: Include metadata for payment reconciliation
• Error Handling: Always check task_32001_run status
• Retry Logic: Implement exponential backoff for failed payments
• Customer Communication: Send clear payment failure explanations
• Webhook Validation: Always validate webhook signatures
• PCI Compliance: Never store raw card numbers

Business Considerations¶

• Transaction Fees: Paystack charges per-transaction fees (check pricing)
• Settlement Time: 2-7 business days for bank transfers
• Chargebacks: Monitor dispute rate to avoid account restrictions
• KYC Requirements: Business verification required for live mode
• Customer Support: Paystack provides merchant support for issues

Integration with Billing Accounts¶

Billing Account Structure¶

When customers make their first payment via Paystack, the system stores:

CREATE TABLE billing_accounts (
  id INT PRIMARY KEY,
  owner_id INT,                    -- CRM client_id
  authorization_code VARCHAR(255), -- Paystack auth code
  customer_code VARCHAR(255),      -- Paystack customer code
  customer_email VARCHAR(255),     -- Customer email
  signature VARCHAR(255),          -- Unique identifier
  card_type VARCHAR(50),           -- visa, mastercard, etc.
  last4 VARCHAR(4),                -- Last 4 card digits
  exp_month VARCHAR(2),            -- MM
  exp_year VARCHAR(4),             -- YYYY
  bank VARCHAR(255),               -- Issuing bank
  status VARCHAR(50),              -- Active, Inactive
  currency VARCHAR(3),             -- NGN, GHS, etc.
  type_id INT                      -- 4 for Paystack
);

Automatic Account Creation¶

Billing accounts are created automatically via webhook when: 1. Customer completes payment via create_payment_link 2. Paystack sends charge.success webhook 3. Webhook handler extracts authorization code 4. New record inserted into billing_accounts table 5. Status set to "Active"

Account Lookup Process¶

// 1. Find client by o_client_id
const match = await matchCompanyIdVal('o_client_id', oClientId, ownerId);

// 2. Get all billing accounts for client
const billingAccounts = await getAllDataRowByColumn(
  'billing_accounts',
  'owner_id',
  match.match.client_id
);

// 3. Find first active account
let validAccount = billingAccounts.find(account => account.status === 'Active');

// 4. Use authorization_code for charge
const chargeData = {
  authorization_code: validAccount.authorization_code,
  email: validAccount.customer_email,
  amount: amount,
  currency: currency
};

Security Best Practices¶

Credential Management¶

✅ DO: - Store API keys in app_connection credentials (encrypted) - Use environment-specific keys (test vs. live) - Rotate keys periodically - Limit key permissions in Paystack dashboard

❌ DON'T: - Hardcode API keys in workflow tasks - Share keys across multiple businesses - Expose keys in email or logs - Use live keys in test workflows

Payment Security¶

✅ DO: - Validate webhook signatures - Log all payment attempts - Monitor for fraud patterns - Require email verification for high amounts

❌ DON'T: - Store customer card numbers - Process payments without customer consent - Skip amount validation - Ignore failed payment notifications

Data Privacy¶

• GDPR Compliance: Handle EU customer data appropriately
• Customer Consent: Get explicit consent for recurring charges
• Data Retention: Delete authorization codes on customer request
• Audit Trail: Maintain payment logs for compliance

Related Tasks¶

• Type 40 - Stripe: Global payment processor alternative
• Type 2 - Email: Send payment confirmations and invoices
• Type 13 - New Client: Create clients for new customers
• Type 16 - Edit Client: Update client payment status
• Type 43 - MySQL Query: Custom billing account queries
• Type 36 - PDF: Generate payment receipts
• Type 14 - Workflow Note: Log payment transactions

FAQ¶

Can I use Paystack for international clients outside Africa?¶

Yes, Paystack supports USD for international payments, but it's optimized for African markets. For better international coverage, consider Stripe.

How long do authorization codes remain valid?¶

Paystack authorization codes remain valid until explicitly revoked by the customer or the issuing bank. Always implement error handling for expired authorizations.

Can I charge amounts in different currencies for the same client?¶

Yes, but each billing account is tied to one currency. Clients paying in multiple currencies need separate billing accounts (one per currency).

What happens if a charge fails?¶

The task returns run: false with the Paystack error message in run_text. Implement retry logic with delays and customer notifications for best results.

How do I refund a payment?¶

Refunds must be processed through the Paystack dashboard or API directly. BaseCloud doesn't currently have a refund action in the Paystack task.

Can I split payments to multiple recipients?¶

Yes, configure subaccounts and split rules in your Paystack dashboard. The charge will automatically split based on your configuration.

How do I handle subscription cancellations?¶

Update the client's billing account status to "Inactive" via MySQL Query task to prevent future automatic charges.

Are there transaction limits?¶

Yes, limits depend on your Paystack account verification level. Check your dashboard for specific limits and upgrade if needed.

How do I test without charging real cards?¶

Use Paystack test keys and test card numbers provided in Paystack documentation. Test payments don't charge real money.

Can I customize the payment page?¶

For create_payment_link, limited customization via Paystack dashboard settings (logo, colors). For more control, use Paystack Inline (requires frontend integration outside BaseCloud).

Summary¶

Paystack provides robust payment processing for African markets with two key actions:

• ✅ charge_account: Recurring charges on stored payment methods
• ✅ create_payment_link: One-time payment URL generation
• ✅ Automatic billing account integration
• ✅ Metadata support for transaction tracking
• ✅ Multi-currency support (NGN, GHS, ZAR, USD, KES)
• ✅ Webhook integration for real-time updates
• ⚠️ Geographic focus: Africa (Nigeria, Ghana, SA, Kenya)
• ⚠️ Requires app connection setup with API keys
• ⚠️ Billing account needed for recurring charges

Perfect for SaaS subscriptions, invoice payments, donations, memberships, and any recurring or one-time payment scenarios in African markets. For global coverage, consider Stripe as a complementary solution.
